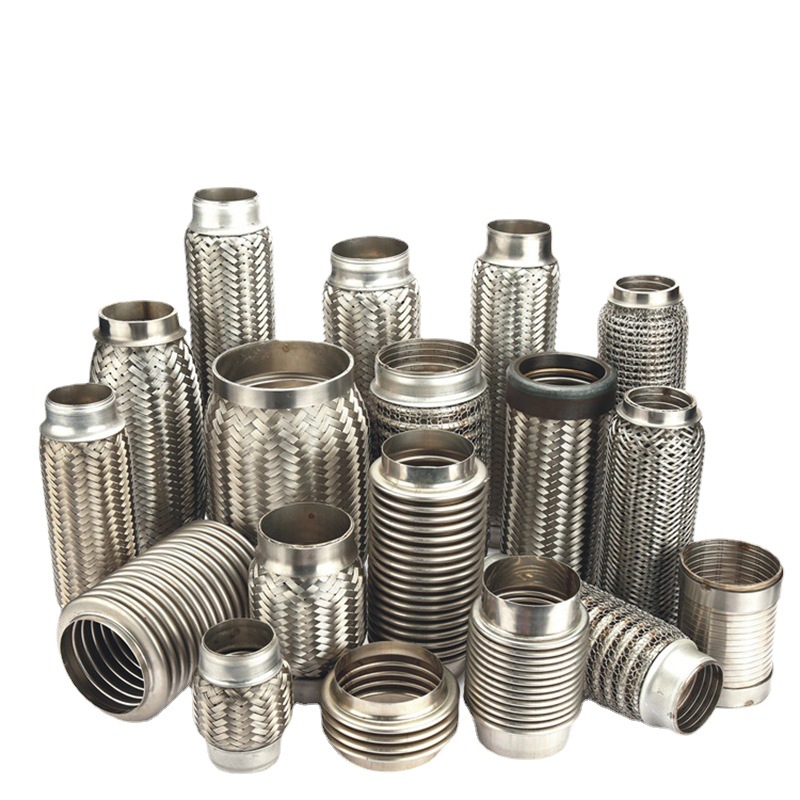

The bellows of the automotive exhaust system is an important component connecting the exhaust pipe and the exhaust pipe segment. This article will discuss the quality and process of automotive exhaust system bellows, focusing on their manufacturing process, material selection, process control, and quality assurance to provide key information about automotive exhaust system bellows.

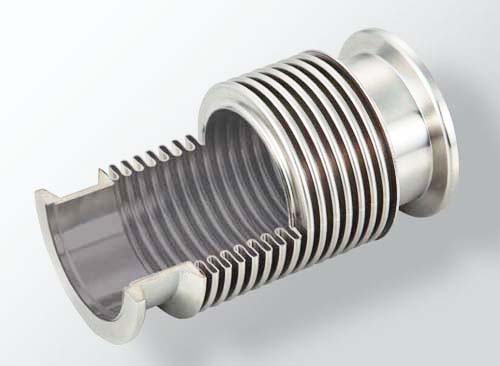

Corrugated pipe is a kind of metal pipe with corrugated structure, it has high bending and tensile performance, can withstand higher pressure, as an important part of engine emission control, automotive exhaust system bellows play a vital role. Its function is not only to connect the exhaust pipe to the exhaust pipe segment, but also to reduce engine vibration and noise conduction, and to absorb thermal expansion of the exhaust system. Therefore, ensuring the quality and workmanship of the bellows of the automotive exhaust system is very important, not only in relation to the performance and reliability of the exhaust system, but also directly affecting the emission level and driving comfort of the vehicle.
CAT carries out strict process control on the manufacturing process of bellows to ensure that every link meets the requirements, including material selection, material pretreatment, forming, welding, heat treatment and other steps. Material selection is one of the key factors in the manufacture of high-quality bellows. In order to ensure the quality of bellows, an effective quality control system must be established. First of all, the quality of raw materials is strictly controlled, and necessary tests and tests are carried out to ensure that they meet the specified standards and requirements.
The choice of material is the basis for ensuring the quality of the bellows. In general, high-quality stainless steel is the material of choice for automotive bellows, with excellent corrosion resistance and high temperature performance, and can meet environmental and operational requirements. In the material pretreatment stage, the material should be dusted, degreased, deaerated and other treatments to ensure the quality of raw materials.
Forming and welding are the two main steps in bellows manufacturing.
The forming process can be carried out by stamping, stretching, and rolling to obtain the desired corrugated structure. There are many ways to form bellows, including cold coiling method, hot coiling method and processing and forming of bellows sheets. During the molding process, it is important to ensure that the bellows form factor is consistent with the design requirements.
The welding process is usually carried out by methods such as argon arc welding or laser welding to ensure the quality and reliability of the welded joints. The welding quality of the pipe section directly affects the overall performance of the bellows, so a suitable welding process must be used to ensure the strength, tightness and corrosion resistance of the welded joint.
In addition, heat treatment is also an important step to eliminate residual stress and improve the mechanical properties of the bellows.
It is also important to carry out regular product quality inspections and tests, such as dimensional measurement, strength test, weld inspection, etc. Through these tests and tests, the quality and performance of the bellows can be guaranteed to meet the needs of customers. In order to ensure the quality of the bellows of the automobile exhaust system, it is necessary to establish a sound quality control and quality assurance mechanism. At the same time, strict implementation of process control is also an important part of ensuring the quality of bellows. Develop and implement strict process standards and operating specifications to ensure the quality and controllability of each process link.
Conclusion:
The quality and craftsmanship of the bellows of automotive exhaust systems play a crucial role in exhaust performance, driving comfort and ride safety. Manufacturing process control, material selection and quality control are key factors to ensure bellows quality and workmanship. Through strict manufacturing process and quality control, we can produce high-quality and reliable bellows products. Therefore, CAT puts quality and process first, and continuously improves and optimizes the production process to meet the needs of the market and win the trust and support of customers.
