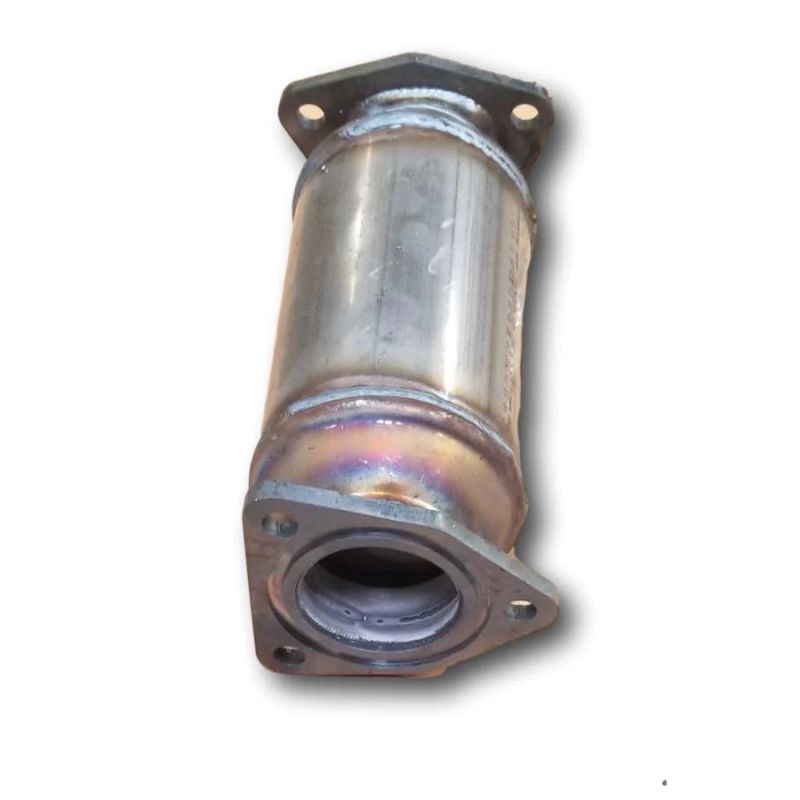

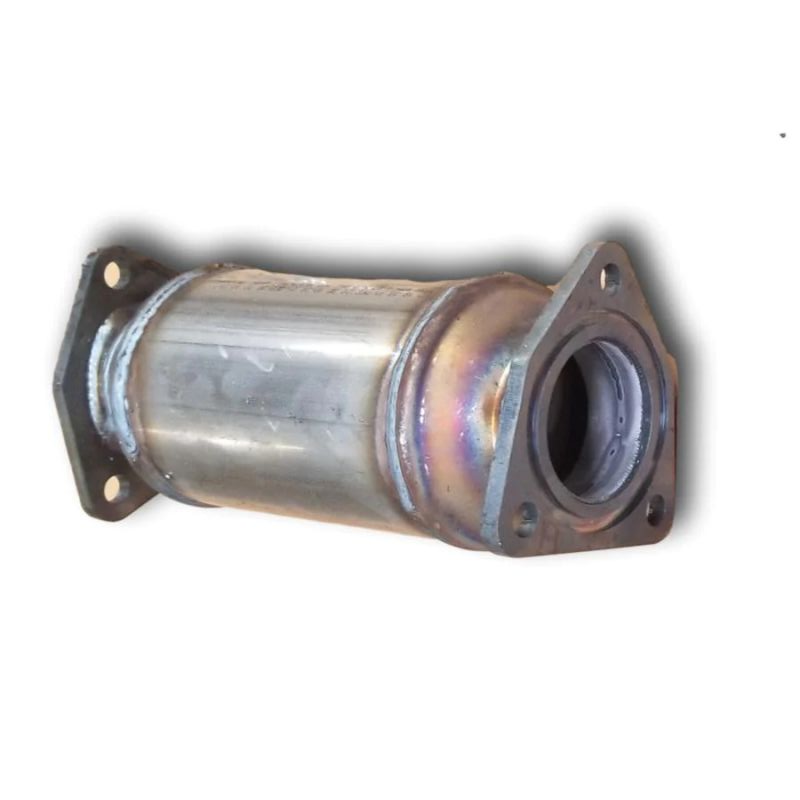

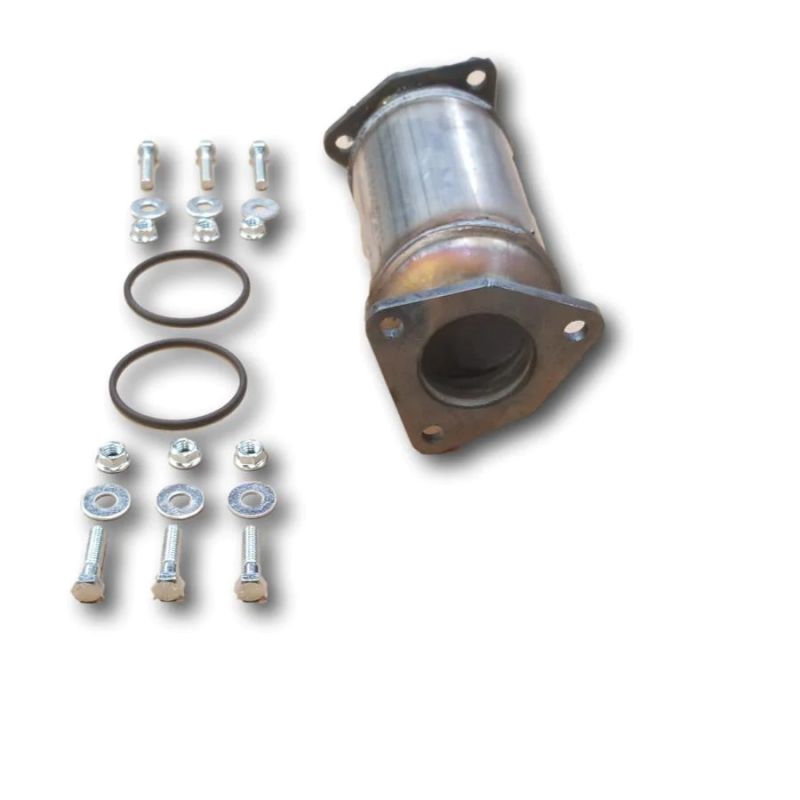

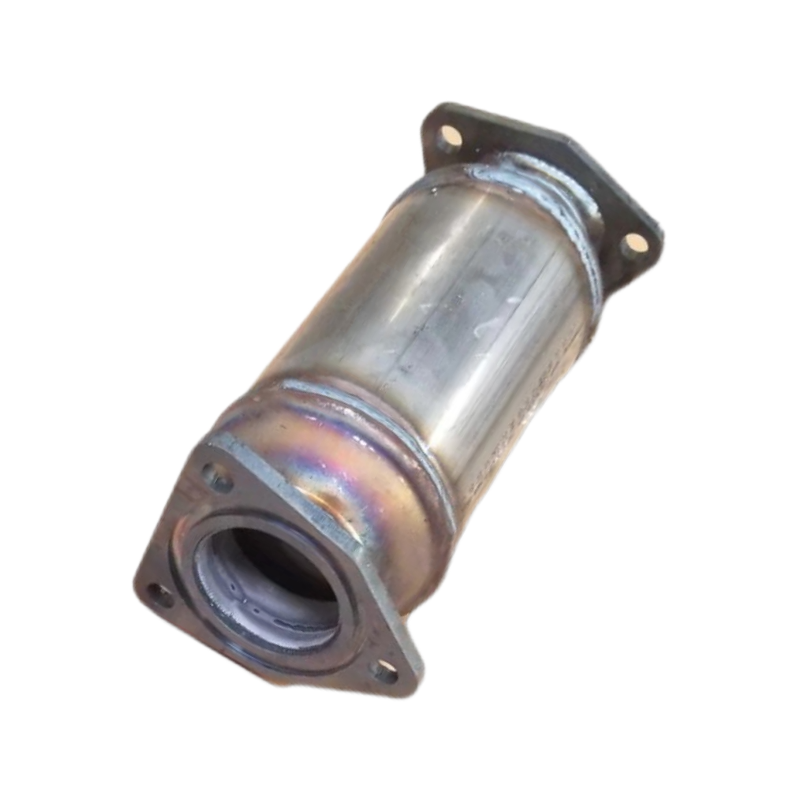

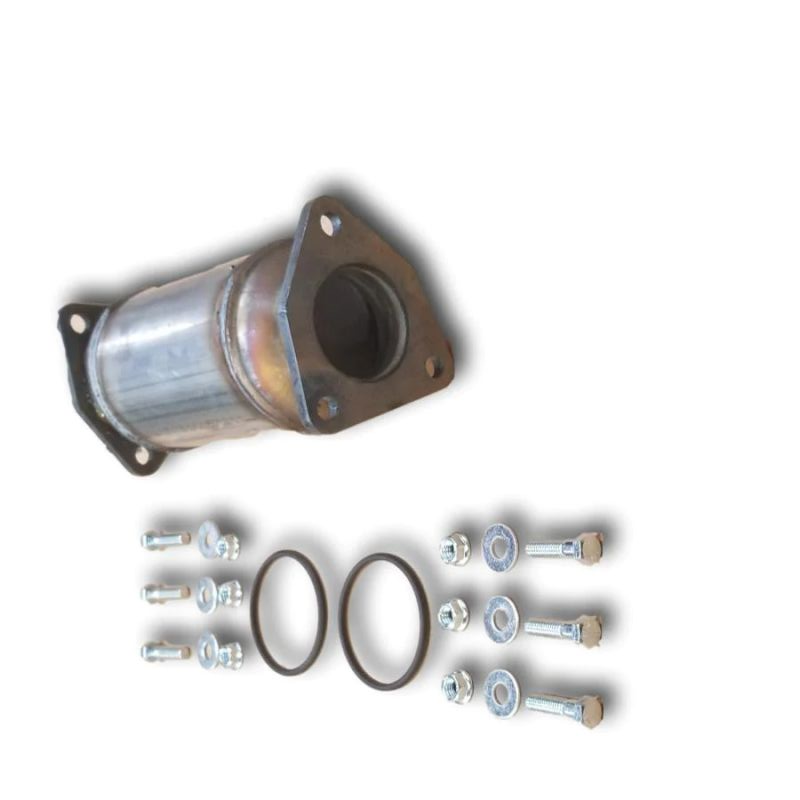

Acura MDX 07-09 underbody catalytic converter 3.7L V6

Used as catalytic converters of gasoline engines, the honeycomb ceramic catalyst substrates are coated by catalyst;at the same time , we improve the specific surface areas and cut down the heat capacity to increase the catalytic function. When the noxious emissions pass through, HC, CO and NOX will be converted into harmless components.


Product Detail

Product Tags

About Catalytic Converter

The necessary property of honeycomb ceramic catalyst substrate used in cars as follows:
1.High specific surface area: ensure exhaust gas could contact weigh catalyst enough.
2.Stable water absorption: guarantee catalyst could be firmly and evenly coated on the surface of substrate, so it's no waste for too thick coating.
3.Warm up characters: after starting up engine, the temperature of substrate could reach the active temperature of catalyst in the shortest time.
4.Low exhaust resistance: ask exhaust resistance of substrate to engine low, so that it won’t affect the performance of engine.
5.High intensity: substrates work in bumpy cars, so the intensity of substrates must be too high to be destroyed.
6.Perfect assembly: substrates are parts of exhaust; perfect appearance and exact dimension could ensure assembly perfect.

Parameters

Carfitment
OE NO. Car Fitment: Mold Year:
- Acura MDX 3.7L V6 07-09

Product name Acura MDX
Model Number DJN756
Brand Name DJN
Emission Standard: EURO 2/3/4/5
Material Inside : ceramic(honeycomb) substrate 400cpsi with mat
  Shell :304 or 409 # stainless steel shell,stainless steel pipe
Oxygen sensor ports Yes
cpsi 400 /600/800
Wall thickness 0.09±0.025
Warranty 30000 miles performance/2 years
Packaging: Air bubble film and Carton Packing
MOQ: 50 pcs
Supply Ability 1000 Piece/Pieces per Week
Place of Origin: Jiangsu
SAMPLE ORDER: Accept
Condition new
Function reduce harmful emission (CO,HC,NO) from motor vehicle Over 95% conversion efficiency;
Service Customers' specific demands available, design drawings are welcomed. OEM service is accepted
Supply Ability 1000 Piece/Pieces per Month
Packaging & delivery Air bubble film and Carton Packing, inside fix the product decently with expanded material
Port Shanghai/Ningbo
Lead time: 10-30 days .
Active catalyst ingredients Pt, Pd, Rh, and rare earth elements
Shape round, oval, race track
