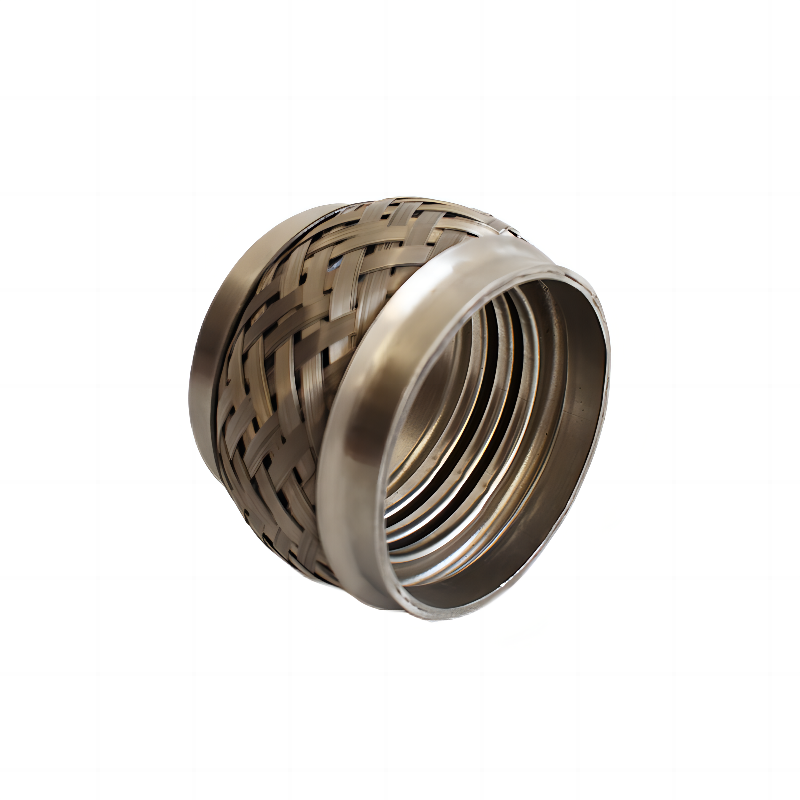

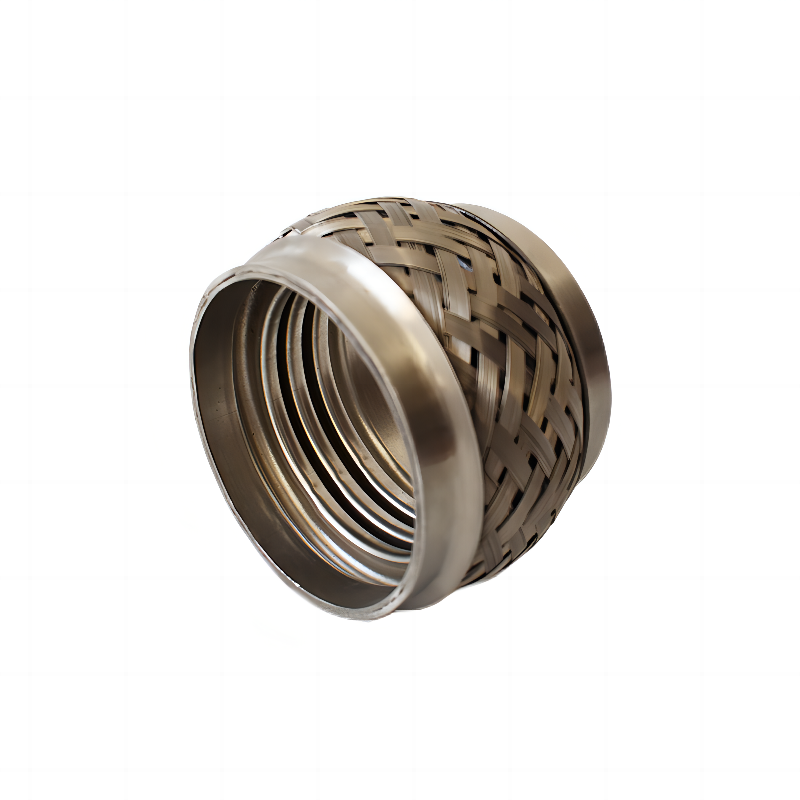

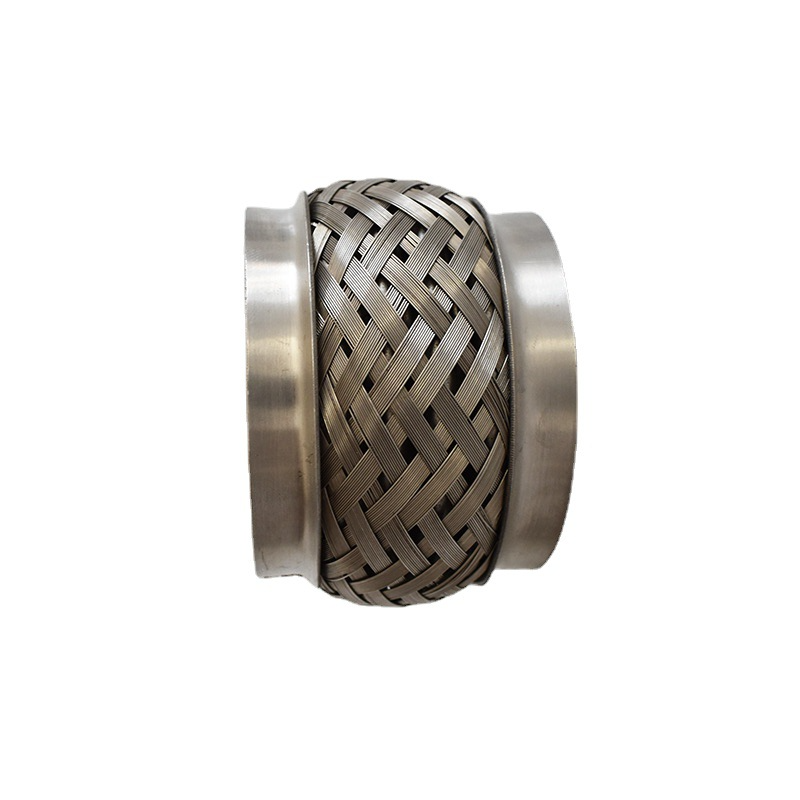

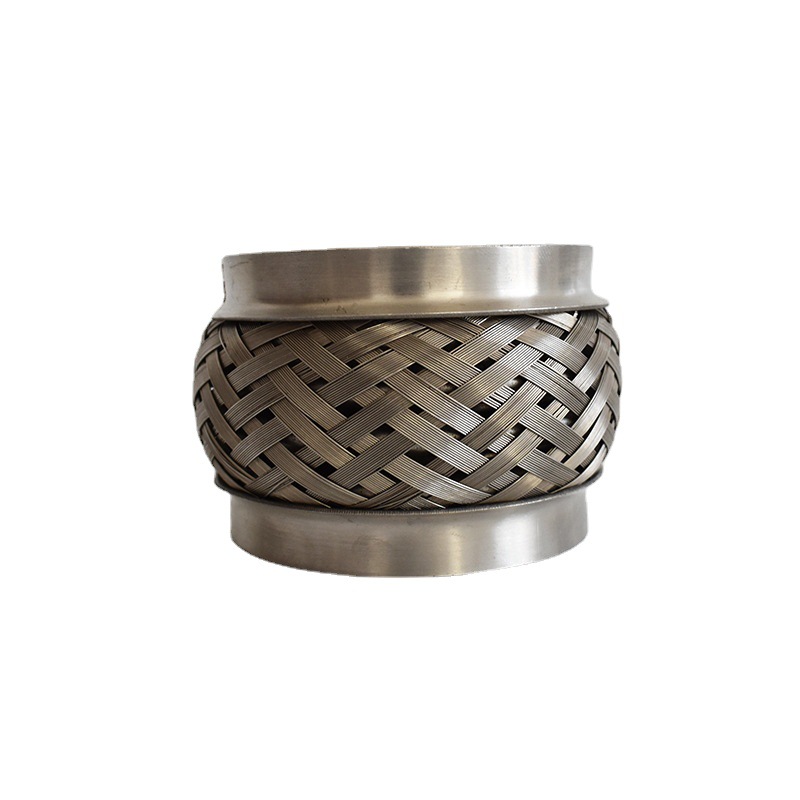

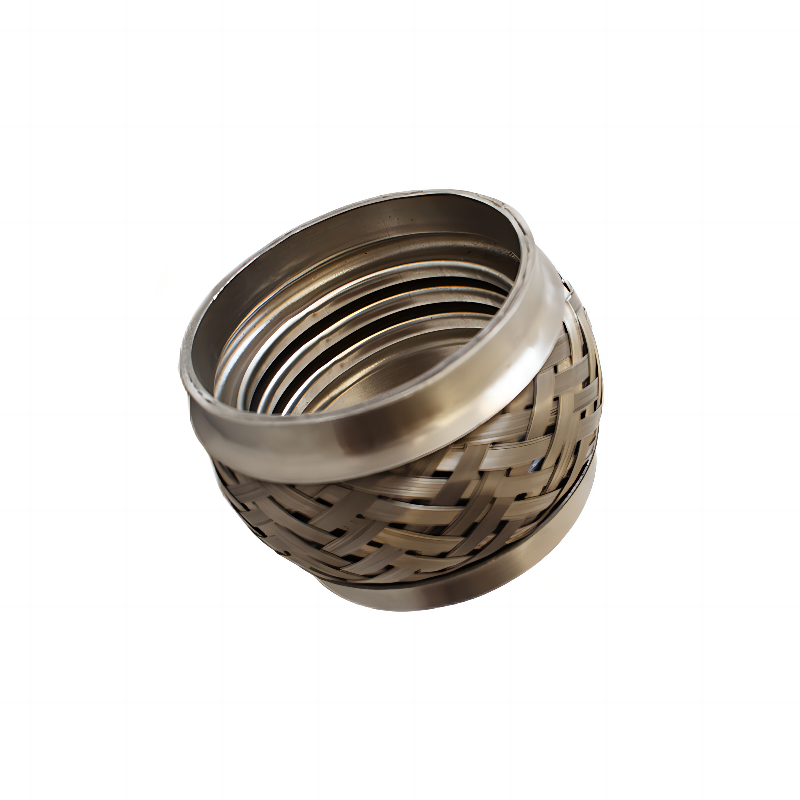

Accept Customer Customization Auto Exhaust Tip Stainless Steel Muffler Bellows Silencer Connecting For Flexible Pipes Exhuast Muffler

1) Flexible exhaust pipe, a component of automobile exhaust system.
2) Installed between the engine and the muffler.
3) Used to reduce engine noise and vibration.
4) Absorb the thermal expansion of the exhaust pipe.
5) Compensate the misalignment of the exhaust converter.
6) Reduce air pollution.
7) Made of SS 304 stainless steel (main components). Once fitted should give you a lifetime’s trouble free use
8) Interlocking inside the lining The flexible exhaust tube/ pipe is made of stainless steel ss201 ss304 ss316 with interlocking hose, braids or corrugated stainless steel hose inside. These flexible pipes can be used in conjunction with auto standard exhaust or repaired systems, or they can be used with high-performance exhaust systems. it can use with clamps or exhaust clamps.

Send email to us

Product Detail

Product Tags

Tube Making Machine

Function: It is used for thin panel, which can weld the thickness of panel from 0.15mmto 0.3mm, pipe diameter 25-76mm.
Laser Tube Cutting Machine Function: Continuous making tube machine for thick panel ,can weld the thickness of panel from 0.8mm to 3.0mm, pipe diameter 38~76mm
Automatic Tube Forming Machine
Function: Automatic high-speed forming machine for flexible tube was R&D by ourselves, with feature of high efficient, fast and environmental protection.And it can do the hydraulic pressure forming to tube material which below 3.0mm

Parameters

Product Name:	High Quality Universal Stainless Steel Auto Muffler Exhaust Flexible Pipe
Model Number	DJN~A20
Brand Name	DJN
OE NO.	performance
Car Fitment:	AGCO, VW - Europe, VOLVO ASIA, Lexus, HONDA, chery, VW Van, Yamaha, JEEP, BMW - Europe, VW LCV - Europe, MITSUBISHI, BMW Motorcycle, Hyundai, Audi, AUDI (FAW), Toyota, PEUGEOT, Jaguar, HONDA (DONGFENG), HYUNDAI (HUATAI)
Year:	2012-2016, 2014-2019, 2017-2017, 2010-2016, 2006-2010, 2006-2012, 2001-2003, 2004-2006
Diameter	1.75‘’(45mm)/2''(51mm)/2.25‘’(57mm)/2.5''(63.5mm)/3’‘(76.2mm)/3.5’‘(89mm)/4’‘(102mm)
Overall length:	4",6",8",9",10",11",12",......
Cap and Nipple Material:	SS409 or Aluminized Steel
Material of the Main Body:	SS201 / SS304
Structure:	Bellows+Outer Braid+Interlock+Inner Braid+Base Type
Car Model:	customized
Packaging:	Normal Export Packing: Once Product Packed With One Transparent OPP Bag; 25pcs/ctn
Port	Shanghai/Ningbo
Supply Ability	100000 Piece/Pieces per Month
Lead time:	10-30 days .
Place of Origin:	Jiangsu
Certificates:	ISO/TS16949 ISO9001
MOQ:	50pcs
